AxisFlying 5.8G SMA Antenna – (LHCP/RHCP)
See all of our AxisFlying Products!

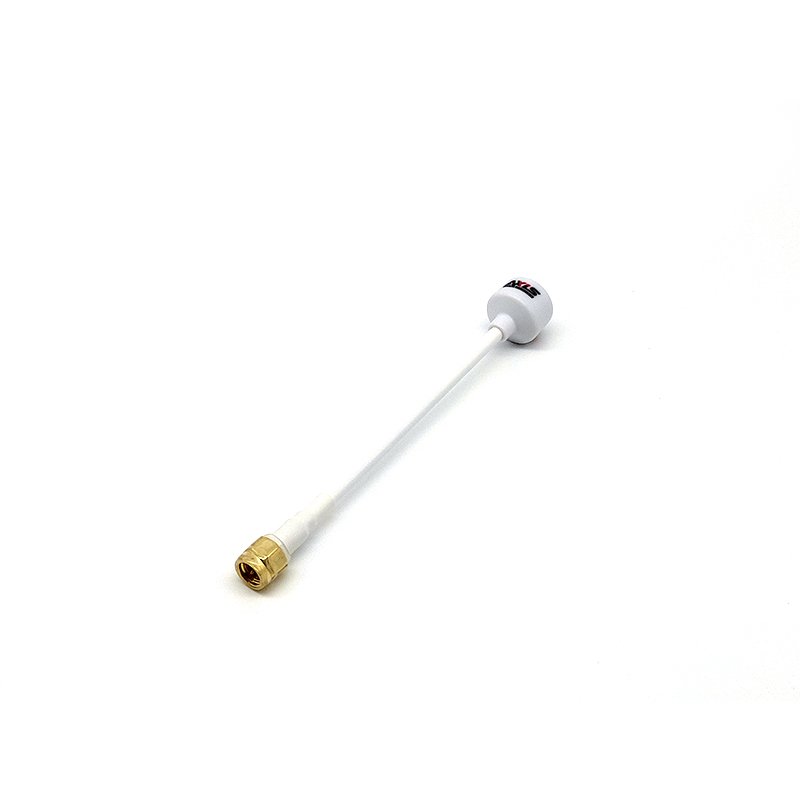

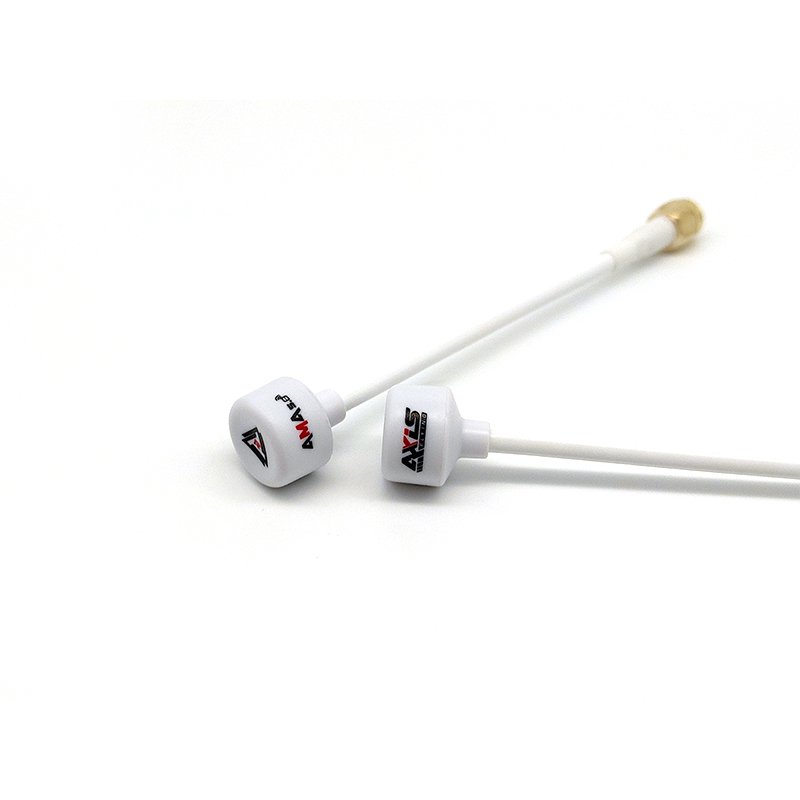

Achieve a crystal-clear and reliable video signal with the AxisFlying 5.8GHz Circular FPV Antenna. This durable, high-performance omnidirectional antenna is designed to be a workhorse for all types of FPV flying, from aggressive freestyle to long-range exploration. It’s the perfect, robust VTX antenna for any build using a standard SMA connector.
Engineered for Performance
The AxisFlying Circular antenna is engineered for a clean and stable video feed. It delivers an impressive 2.5dBi gain for excellent range and signal penetration. With a near-perfect axial ratio, it provides outstanding rejection of multipath interference—the number one cause of video breakup. This means you get a clearer, more stable picture with less static, especially when flying around obstacles like trees and buildings.
Built to Last
This antenna is built to withstand the brutal reality of FPV. The sensitive cloverleaf element is protected by a tough, impact-resistant polycarbonate housing that is ultrasonically welded shut. This is connected to a heavy-duty, semi-rigid RG402 coax cable that can take a beating from prop strikes and crashes without failing.
Key Features:
- High 2.5dBi Gain: Provides a strong signal for excellent range and video penetration through obstacles.
- Excellent Multipath Rejection: The circularly polarized design provides a stable video feed with significantly less static and breakup.
- Durable Construction: A tough polycarbonate shell and a semi-rigid RG402 cable protect the antenna from crash damage.
- LHCP & RHCP Options: Allows you to choose the correct polarization to match your goggles and avoid interference from other pilots.
- Standard SMA Connector: A robust, screw-on connector for wide compatibility with many popular video transmitters.
IMPORTANT: Choose Your Polarization
To get a clear video signal, the polarization of your VTX antenna (on the drone) must match the polarization of your receiver antennas (on your goggles). Please select your desired version from the dropdown menu.
- RHCP (Right-Hand Circular Polarized): The most common standard in FPV. If you are unsure, you probably need RHCP.
- LHCP (Left-Hand Circular Polarized): A great option for flying with others to reduce video interference. If your flying buddies all use RHCP, using LHCP can give you a cleaner signal.
Specifications
- Brand: AxisFlying
- Gain: 2.5dBi
- Polarization: Selectable RHCP or LHCP
- Connector: SMA Male
- Cable: Semi-Rigid RG402
- Housing: Injection-Molded Polycarbonate
- Weight: ~13.5g
- Length: ~120mm
What’s in the Box?
- 1x AxisFlying 5.8GHz Circular SMA Antenna (in your selected polarization)
