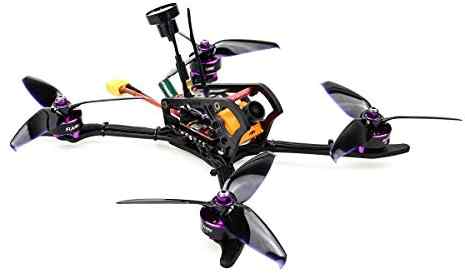

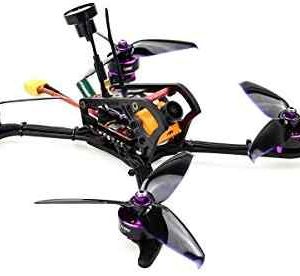

HGLRC 4s/5s Mefisto 226MM FPV Racing Drone (PNP)

HGLRC 4s/5s Mefisto 226MM FPV Racing Drone (PNP)

HGLRC has a series of excellent pre-built quads for drone racing, and the Mefisto is one of their newest contenders. This version is built for 4-5s batteries.

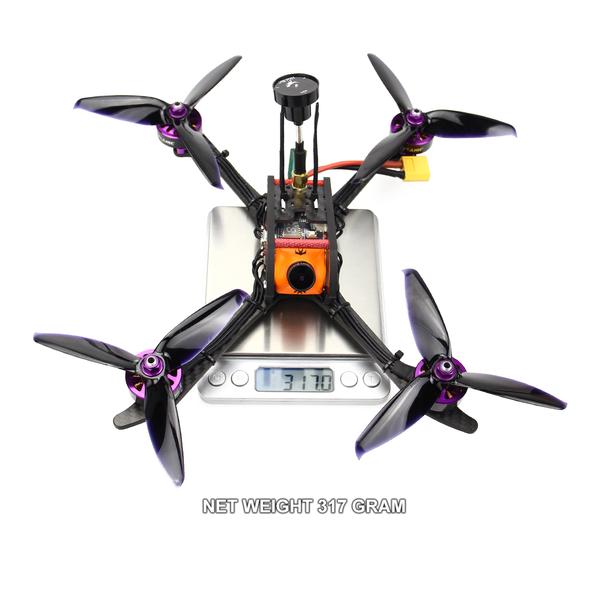

Net Weight:317g

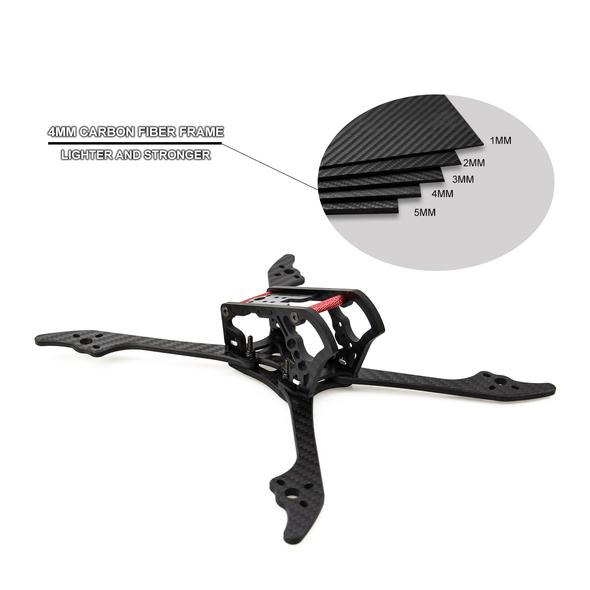

Mefisto 226MM Carbon Fiber Frame Kit
Wheelbase: 226mm
Arm Plate Thickness: 4mm
Bottom Plate Thickness: 4mm
Material: Carbon Fiber
Weight: 76g

Airbus F4 OSD Flight Control Board ( D-Shot Version)
MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K.
Black Box: Flash 16M
Input Voltage: 2-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 36x36mm board, 30.5mm mounting holes (M3)
Weight:8.3g
Support SBUS/PPM/DSMX receiver

DinoShot 60A BL32 3-6S 4-in-1 ESC

Input Voltage: 3-6S Lipo battery
Constant Current: 60A-4S/50A-5S/40A-6S
Peak Current: 70A
BEC Ouput: NO
Firmware:32bit ESC with BLHELI_32 firmware
Size: 36x36mm (main board)/40x48mm (including pad)
Installing Hole: 30.5×30.5mm,M3
Weight: 12.9g
CPU:STM32F051
MOS Tube: TOP QUALITY MOSFET
Protocol:DSHOT1200/600/300/150/Oneshot125/42,MultiShotDamped

GTX226 V2 VTX (Transmitter)
Output power: PIT/25mW/100mW/200mW/400mW switchable
Control mode:BFOSD control(RX)/button
BAT: 7-26V,BEC 5V-1A
240mA—-400mW
Video system: NTSC/PAL
Antenna: IPX
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
Size: 20mm×25.5mm×8.5mm
Weight: 5.3g

RunCam Swift 2 CAMERA

Image Sensor: 1/3″ SONY Super HAD II CCD
Horizontal Resolution: 600TVL
Lens: 2.1mm Lens
FOV: 160 degree(2.1mm)
Signal System: PAL
S/N Ratio: >60dB(AGC OFF)
Electronic Shutter Speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000
AutoGain Control(AGC): YES
Back light compensation(BLC): YES
Min.illumination: 0.01Lux/1.2F
WDR: D-WDR
DNR: 2DNR
Day/Night: Color / Auto / B&W
Power: DC 5 to 36V
Net weight: 14g
Dimensions: 28.5mm * 26mm * 26mm

HF2306 2450KV 4-5S Motor

KV: 2450KV
Stator Diameter: 23mm
Stator Thickness: 6mm
No.of Stator Arms: 12S
No.of Rotor poles:14P
No-load Current(A/10V):1.6A
Motor Resistance:49mΩ
Max Continuous Current:41.4A
Max Continuous Power:660W
Weight:32g
Rotor Diameter:28.72mm
Shaft Diameter:5mm
Body Length:16.1mm
Overall shaft Length:29.7mm
No.of Cells(Lipo):4S~5S
Wire type:20AWG 110mm

Gemfan 5152 5 Inch 3-Blade Propeller
Color: Black
Quantity: 3 CW & 3 CCW

Package Included:
1x HGLRC AIRBUS F4OSD Flight Control Board
1x HGLRC 60A BL32_60A 3-6S 4in1 BLHeli_32 ESC
1x HGLRC HGLRC GTX226 V2 VTX FPV Transmitter
1x RunCam Swift 2 CAMERA
1x Mefisto 226MM Carbon Fiber Frame Kit
4x HGLRC 4-5S HF2306 2450KV Motors
6x HGLRC 5152 3 propeller
1x Battery Strap
1x Pagoda 5.8G Antenna
1x Receiver
