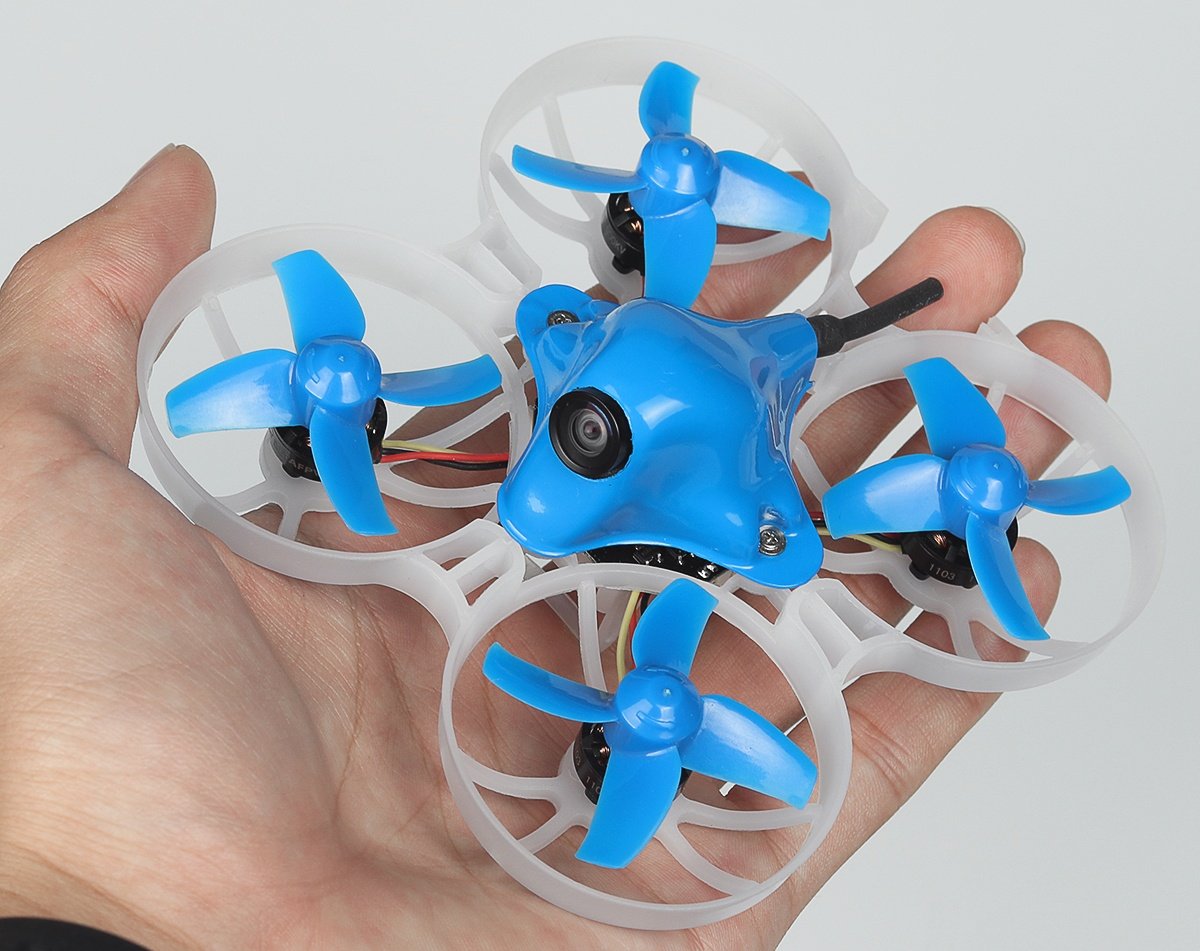

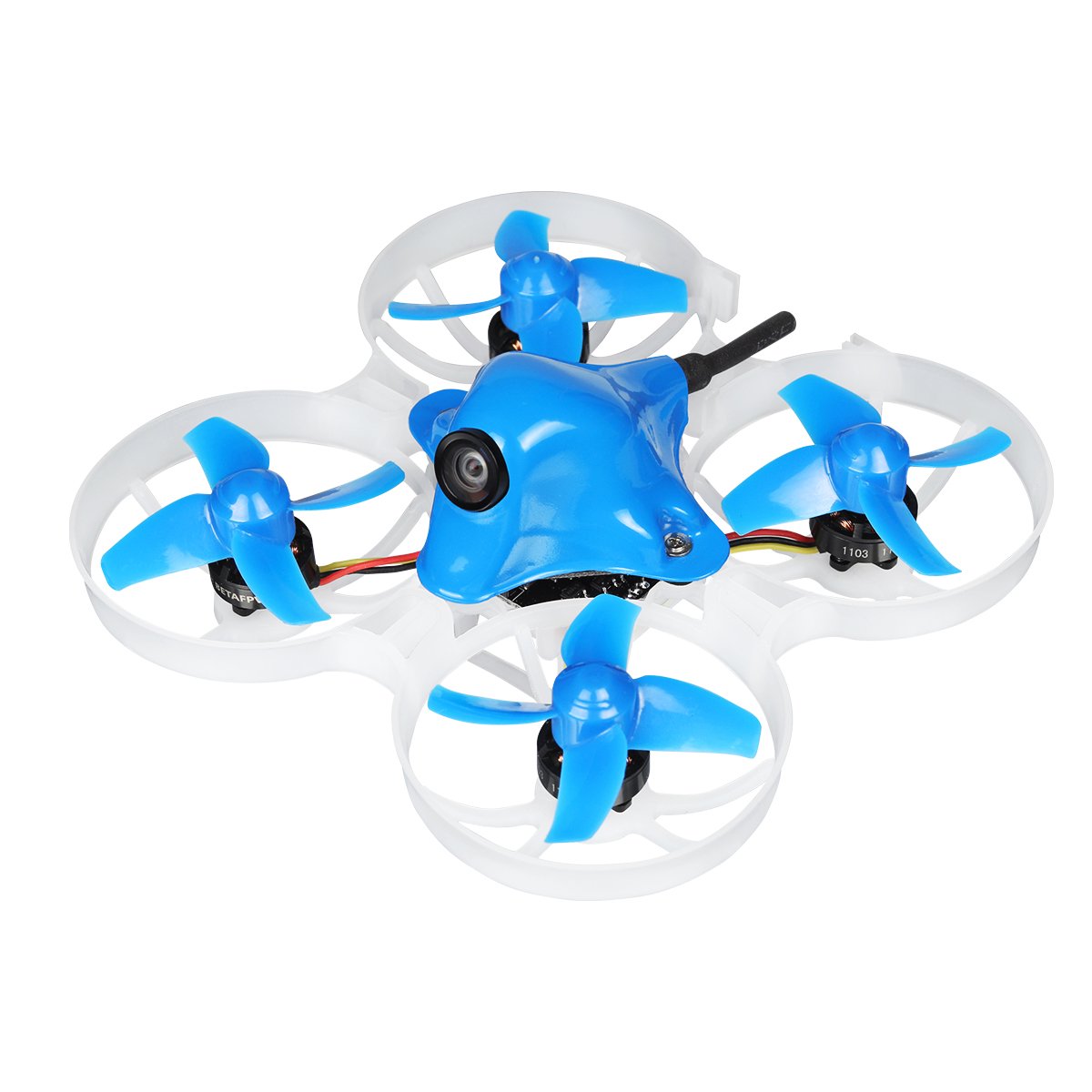

Beta75X 2S Whoop Quadcopter (XT30) with FrSky XM+ Receiver

Beta75X 2S Whoop Quadcopter (XT30) with FrSky XM+ Receiver

The Beta75X starts a new era of 2S whoop drones. With a big improvement in power, you can fly real acro, just like a larger quad, but it’s also still small enough, safe enough, and quiet enough to fly anywhere.

Features:

• With the high performance STM32F405 processor FC boards and tuned Betaflight Ominibus 3.5.0 firmware, everyone could fly the Beta75X drone like a racing pro.
• Durable and light enough frame is customized for the Beta75X. A total weight of 41g give pilots a good balance of weight and nice punch on 2S battery.
• Whole drone no soldering or tinkering necessary. Customized lightest 1103 11000KV motors with cable connectors. Just plug and play.
• 350mAh 2S high rate battery is recommend in default. But pilot could also use their whoop batteries with a replaced power cable. Optional and affordable.

SPECIFICATIONS:

• Weight: 41g (without battery)
• Motors: 1103 11000KV with connector
• Props: 40mm 4-blades props, 1.5mm shaft hole
• Camera: Z02 AIO Camera 35 degree
• Receiver : Frsky XM+
• Battery: 350mah 2S Battery XT30 (Stock battery)

FC SPECIFICATIONS:

• CPU: STM32F405
• Six-Axis: MPU6000
• Size: 26mm x 26mm, whoop mounting pattern
• Firmware version: Betaflight OMNIBUSF4SD (OBSD) 3.5.0
• OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
• Smart Audio port is available for radio control VTX

ESC SPECIFICATIONS

• Support BLheli/BLHELI_S suite Pass-through ready
• Dshot600 in default
• Input voltage: 2S lipo
• Cotinue current: 6A
• Peak current: 10A
• Firmware: BLHELI_S
• Processor: SILABS EFM8BB21F16G

Z02 AIO Camera VTX

On the Beta75X, it is the customed version with VTX board and camera board split.

• Output power: 0mW, 25mW and 200mW (Adjustable)
• Smart Audio function is included for radio control
• Antenna: Dipole ANT
• Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362~5945MHz
• TV System: NTSC
• Field of view: 100-120 degrees with 1/4 lens

PROPS OUT

The Beta75X drone comes with “props out” in default. Why we need “props out” direction? This is what is commonly referred to as reverse props, spinning your props in the opposite direction will help keep dirt, grass and any other substance you come in contact with from blasting into your FPV camera and keeping you from being able to see. This is a huge statement for a whoop class drone to come stock with Reverse Props!

Default Betaflight props direction, quadcopter dips and “washes out” in hard corners. With reversed props or “props out”, no more dipping even in hardest cornering.

PACKAGE

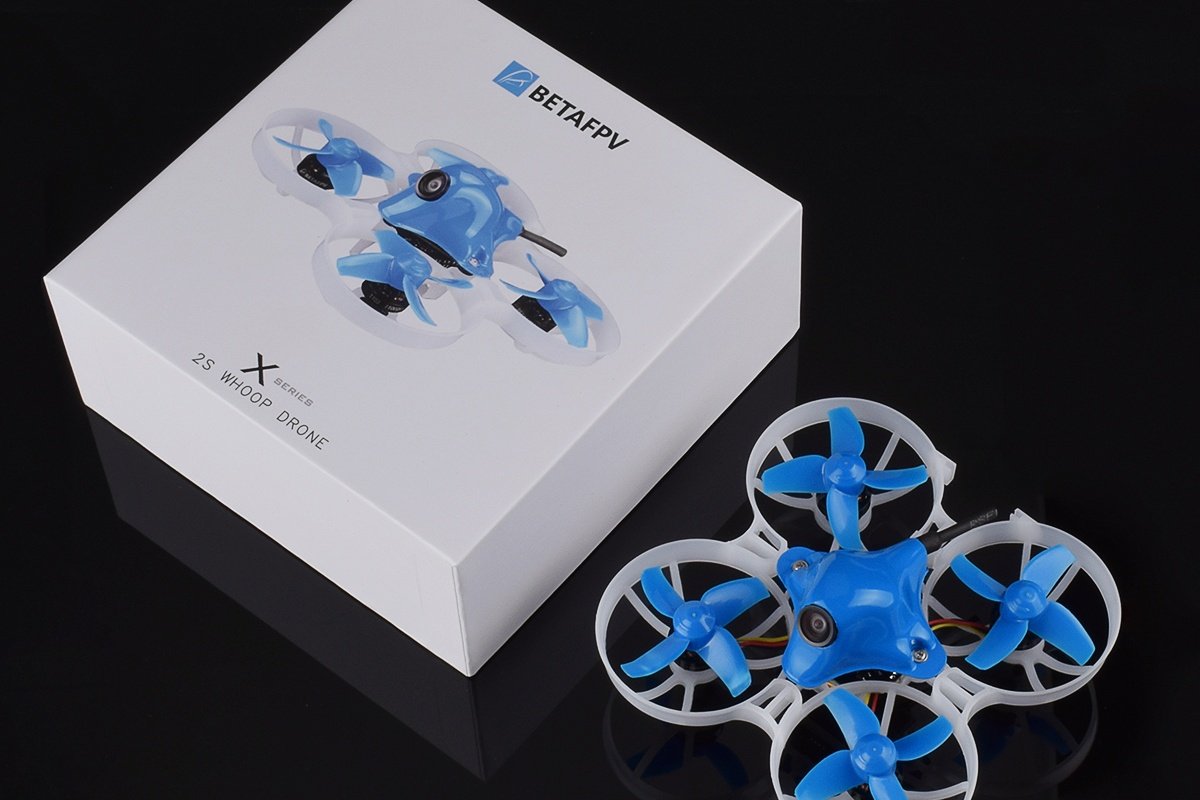

• 1 * Beta75X BNF 2S Whoop Quadcopter
• 1 * Spare 40mm 4-blades props (2CW+2CCW)
• 1 * 350mAh 2S 35C-70C battery
• 1 * Spare Canopy

This is the XT30 Model, you are still welcome to solder on any lead connector of your choice.
