HGLRC DVR Nano Mini Video Recorder
A 20x20mm stacking DVR made for your FPV quad. Supports an SD card to record your camera’s footage directly onboard, so you don’t get the noise from your FPV goggles in the video.
DC Characteristics
POWER SUPPLY：+5.0V
Current Consumption：250mA , Max
Environmental Specification
Operating Temperature：-10~+55 ºC
Storing Temperature：-30~+85 ºC
Operating humidity：85%RH
Audio & Video Characteristics
Video IN Format：NTSC/PAL
Compress Format：MJPEG
Records Video Size：VGA(640*480)
Records Frame Rate：24 Frames
Max Support TF Card：32G
Audio IN：MIC
AV OUT：Read from TF Card
Automatic recording time of video：5 mins one video
Storage：Stop once record is full

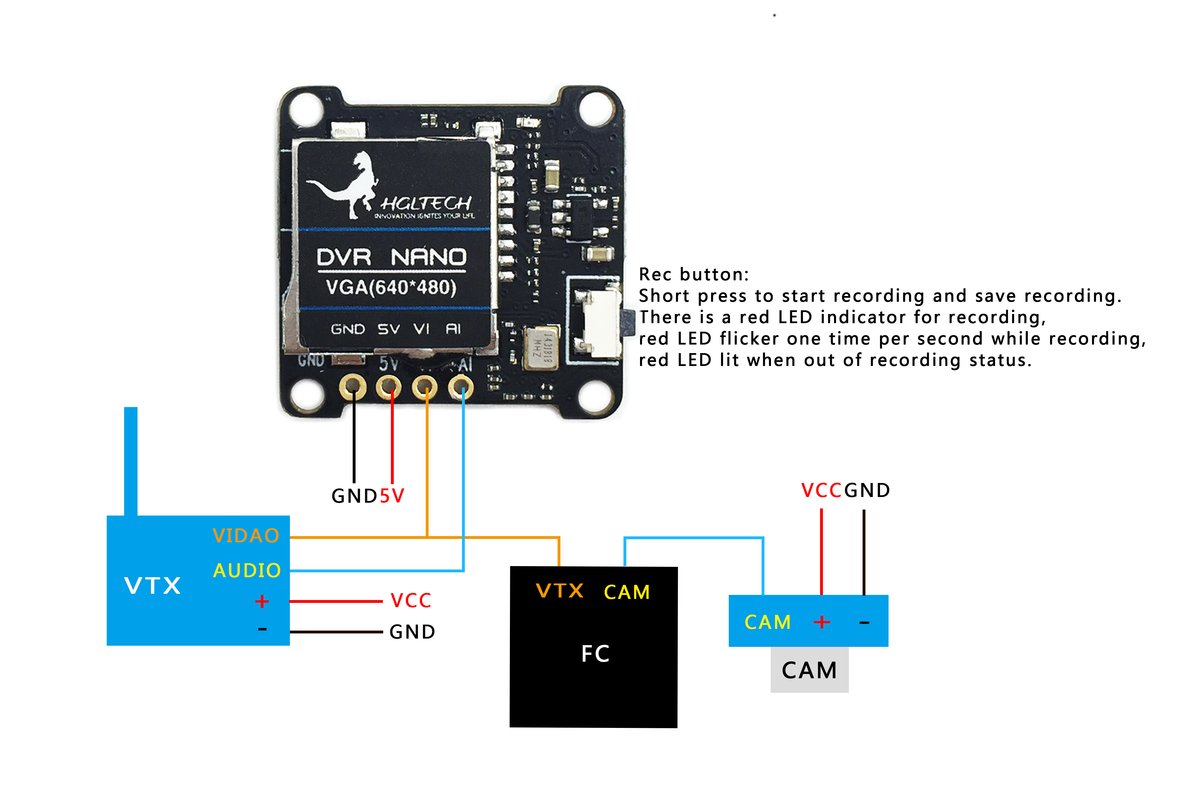

Video Operation：Short press button(start/save)
