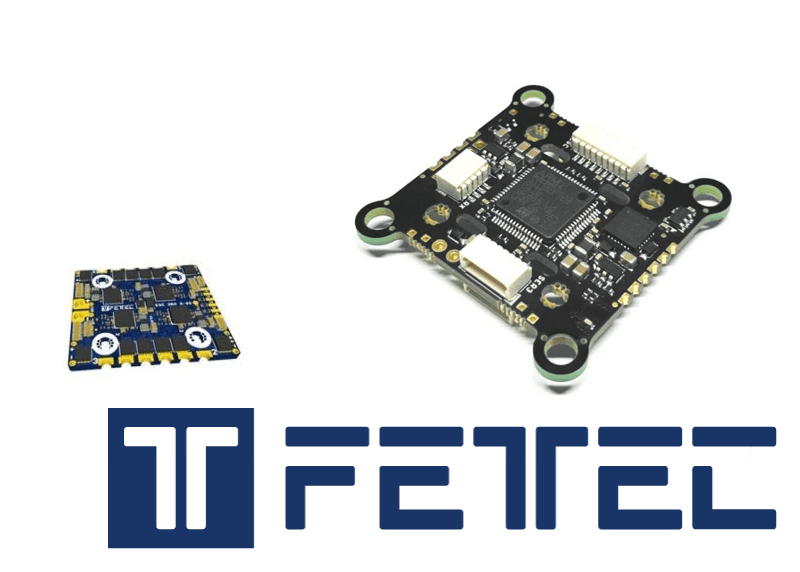

FETtec KISS F7 FC and 4-in-1 High Performance ESC Bundle
Check Out The MyFPV Adapter To Make Mounting Easy!
The Fettec F7 FC 30×30 and 20×20 KISS Firmware Flight Controller and the FETtec High Performance DShot 2400 4in1 ESC in one bundle for great savings!
FETtec F7 FC
- KISS FC firmware
- Dimensions 35x30mm without 30×30 corners
- 20x20mm (with breakable holes M2 to M3) and 30x30mm hole distance useable (breakable 30x30mm corners)
- Prozessor F7 [DShot 2400, Oneshot, Onewire]
- Place for RX and VTX
- build-in real Pit-Mode for unify nano
- seperate onboard 5V BEC for VTX
- 4 signal and gnd pads in each corner
- 8 pin connector for solder free FETtec ESC connection
*Pin headers are not included.
FETtec High Performance DShot 2400 4in1 ESC (KISS FC Passthrough)
FETtec ESC 4in1 high performance DShot 2400 ESC’s with full sine wave control. The most powerful and reliable 4in1 esc for the Fettec FC and Kiss FC. They’ve put a lot of modern engineering design into their ESCs, including software made from the ground up for their FPV hardware.
- Active current limiting at 35A
- Input voltage: 3s – 6s
- High quality 40V Mosfets
- STM32G071 @ 64MHz
- Dimensions: 30mm x 35mm
- 20mm x 20 mm mounting
- Mounting holes 2mm expandable to 3mm
- Soldering holes for up to 5 additional capacitors
- Automatic DShot recognition
- 128 kHz Motor PWM
