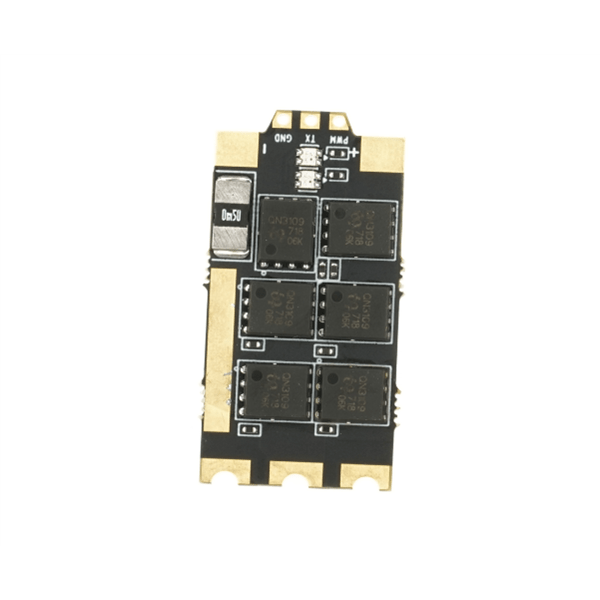

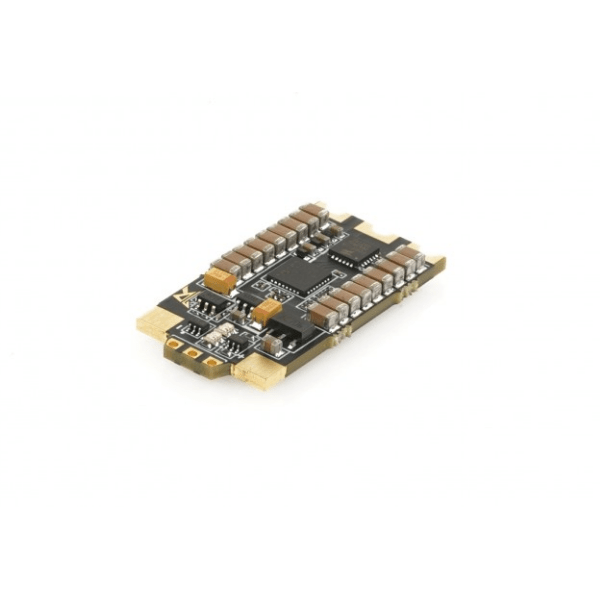

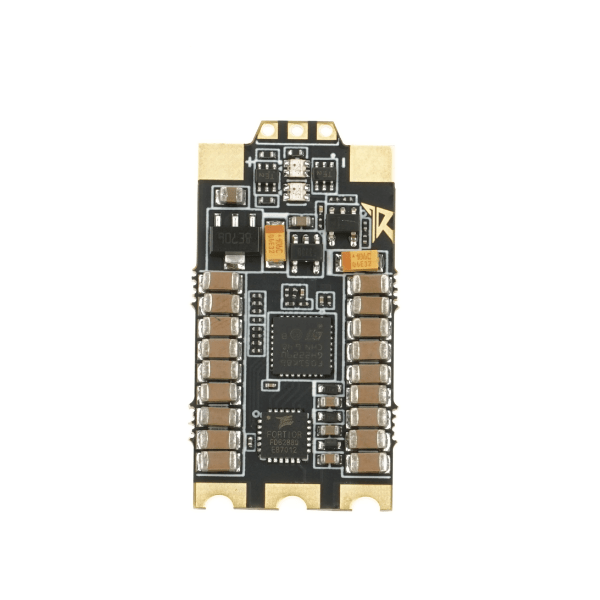

Airbot Wraith32 V2.2
The Wraith32 V2.2 is an upgraded version of previous Wraith32 35A that comes with 1800uf caps on board. The Wraith32 V2 is an upgraded version of previous Wraith32 35A that comes with 1800uf caps on board. Compared to the first version, the Wraith32 V2 has more capacitors to help smooth a noisy environment, and the data transmission interface is placed outside.
Wraith32 is the first 32bit BLHELI ESC that use the latest BLheli_32 firmware in the world. Dshot up to at least Dshot1200, and at rates up to at least 32kHz is now supported. If you are seeking for a small, powerful blheli_32 capable 32bit ESCs, the Wraith32 ESCs will certainly fit the bill providing 35Amps of power.
The Wraith32 ESC runs in conjunction with an ARM 32bit compatible MCU. It can run input signals with lower latency, at faster rates, smooths out the RPM band, is capable of both voltage and current monitoring and limiting, as well as offering customization of the brake on stop force. Unlike current ESCs, the Wraith32 ESC has A LOT of room to grow and wide compatibility range with future products.
One of the nicest features with the Wraith32 35A ESC is the auto timing feature, which (essentially) is designed to offer the pilot the smoothest and most efficient flight experience available, which is a freestyle pilots dream come true!
Features:
- 32bit Compatible ESC (Blheli_32)
- Dshot1200 up to 32kHz
- Incredibly small size
- Very low weight
- Auto Timing Feature
- On-Board RGB LED
- Build in Current sensor
- Smooth Response
Specifications:
- 2-6s Lipo input
- 35A designed
- Compatible to BetaflightF3 Flight Controller
- Size: 15*30mm
